Non-touchscreen
49 Inch Stretch Monitor Bar LCD Screen SDK Ultra Wide Wall-Mounted Retail Store
49 Inch Metal Stretched LCD Display Display area:1195.7*336.3mm Resolution:3840*1080 Material:Metal
49-Inch Stretched Bar LCD Display SDK Solution for Modern Retail Advertising
In today’s retail and commercial environments, digital signage is shifting from traditional screens to ultra-wide form factors that better match real-world spatial layouts.
The newly developed 49-inch stretched bar LCD display with SDK integration is designed specifically for this transformation. Unlike standard 16:9 monitors, this solution delivers a long horizontal visual experience that fits perfectly into shelves, corridors, elevators, and retail aisles.
As a professional factory in commercial display manufacturing, ZXTLCD focuses on providing scalable solutions for global system integrators, and this model is widely deployed as a high-performance indoor bar display for retail and smart building applications.
A New Format for Retail Digital Communication
Traditional digital signage often fails in narrow or linear spaces. The stretched bar LCD format solves this limitation by offering:
- Ultra-wide display ratio for shelf and corridor installation
- Continuous content playback across long visual zones
- Better attention capture in high-traffic retail environments
- Seamless integration into store architecture
This makes it especially effective as an indoor bar display in supermarkets, convenience stores, and brand retail chains.
SDK Integration for Custom Development
One of the key advantages of this model is its SDK support, allowing developers and integrators to build customized applications.
With SDK access, users can:
- Develop proprietary retail advertising systems
- Integrate with third-party CMS platforms
- Control multi-screen content remotely
- Enable real-time data-driven advertising
- Synchronize playback across multiple devices
This flexibility makes it suitable not only for retail but also for smart city and IoT-based advertising networks.
49 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 49 inch | |
Resolution | 3840*1080 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
The specification of Internal PCB Board | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Application Scenarios
The 49-inch stretched LCD bar display is widely used in:
- Retail store shelf advertising
- Supermarket promotional zones
- Shopping mall corridor displays
- Elevator advertising systems
- Restaurant digital menu boards
- Transportation information signage
Its role as an indoor bar display is particularly strong in retail environments where space is limited but advertising impact is critical.
OEM & ODM Manufacturing Capability
ZXTLCD provides full customization services for global partners.
We support:
- Custom screen sizes and ratios
- Android / Windows system integration
- Private label branding
- Hardware interface customization
- CMS software integration
- Project-based engineering support
This allows distributors and system integrators to deploy tailored digital signage solutions worldwide.

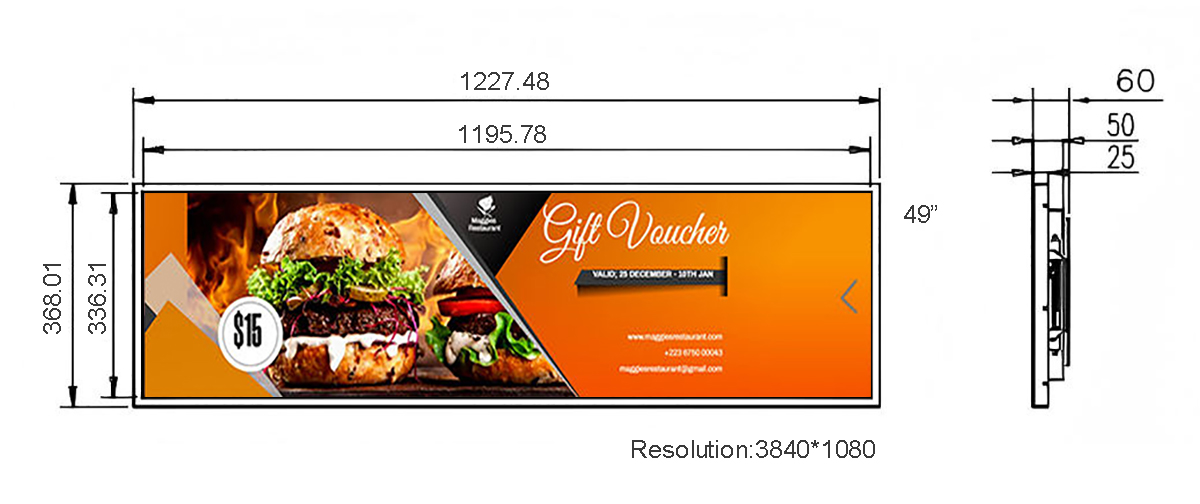

Product Dimension as follows:
FAQ
What is an indoor bar display used for?
It is used for retail advertising, shelf promotion, and information display in indoor commercial spaces.
Does it support SDK development?
Yes, SDK integration is available for custom application development.
Can it run 24/7?
Yes, it is designed for continuous commercial operation.
Is customization available?
Yes, OEM and ODM services are fully supported.
