Non-touchscreen

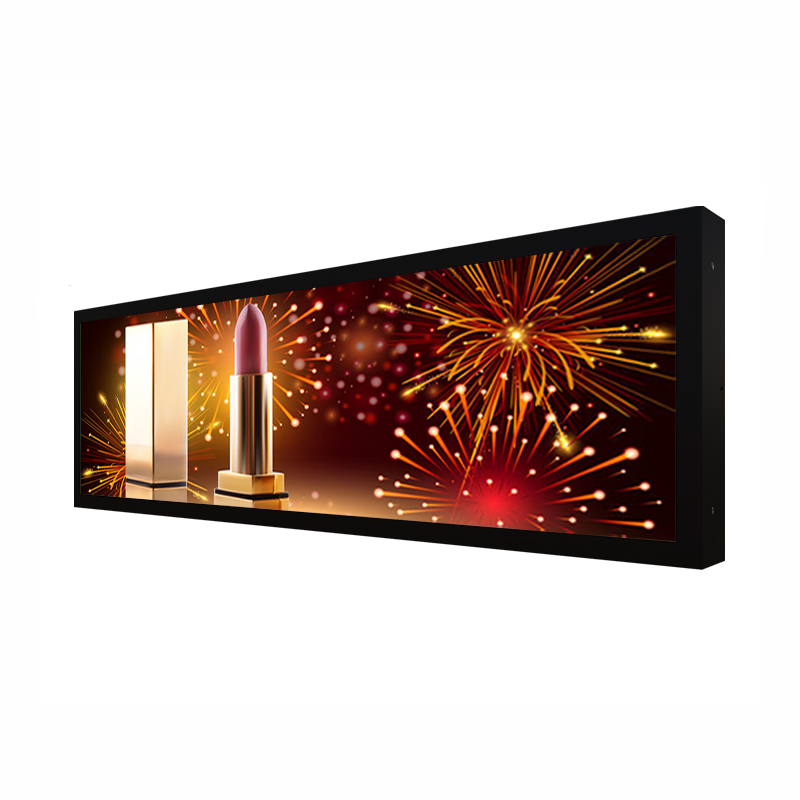

48.5 Inch Custom Stretched LCD Advertising Monitor for Super Market Shelf Display
The 48.5 Inch stretched LCD advertising monitor on the beauty product shelf integrates virtual makeup try-on functionality. It captures customers' faces via camera, allowing them to try on different shades of lipstick, eyeshadow, and blush in real time. The makeup effect is displayed in high definition; once satisfied, customers can scan a code to place an order. Upgrading ordinary shelves to an experience zone, data shows that virtual makeup try-on can increase beauty product conversion rates b
Specifications
- Screen Size
- 48.5 inch
- Resolution
- 3840*720/1920*360
- Display area
- 1209.60*226.8mm
48.5 Inch Custom Stretched LCD Advertising Monitor for Super Market Shelf Display
High-Impact 48.5 Inch Stretched LCD Display for Supermarket Shelf Advertising
The 48.5 Inch Custom Stretched LCD Advertising Monitor for Supermarket Shelf Display is a professional retail digital signage solution designed for supermarkets, grocery stores, convenience stores, shopping malls, and brand retail environments.
With its ultra-wide bar-type structure, this Shelf Edge Stretched LCD Display delivers dynamic advertising content directly at the point of purchase, significantly improving product visibility and customer engagement.
As a factory-direct LCD display manufacturer, ZXTLCD provides full OEM and ODM customization services for global retail and supermarket digital signage projects.
Stretched Bar LCD Technology for Shelf Edge Advertising
This Ultra-Wide Shelf LCD Display uses a stretched LCD panel designed specifically for installation on supermarket shelves and retail gondolas.
Key advantages include:
- Ultra-wide panoramic display format
- Slim bar design for shelf integration
- High-resolution LCD panel support
- Continuous video and image playback
- Strong visual impact at eye level
- Suitable for modular shelf installation
Shelf edge stretched displays are widely used in retail environments because they effectively convert unused shelf space into high-value advertising zones.
48.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 48.5 inch | |
Resolution | 3840*720/1920*360 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
The specification of Internal PCB Board | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Ideal for Supermarket and Retail Environments
The 48.5 Inch Shelf Edge Display is widely used in:
- Supermarkets
- Grocery stores
- Convenience stores
- Shopping malls
- Retail chain stores
- Beverage and FMCG displays
- Cosmetic retail shelves
- Electronics retail stores
- Promotional product areas
- Brand marketing zones
It is especially effective for increasing impulse purchases and promoting product visibility at the point of sale.
Custom OEM & ODM Manufacturing Services
ZXTLCD provides full OEM and ODM services for global retail signage projects.
Customization options include:
- Custom stretched screen sizes (8.8”–88”)
- High brightness customization (500–1000 nits optional)
- Android embedded system integration
- Windows industrial PC configuration
- CMS software integration
- Housing design customization
- Interface customization (HDMI / USB / LAN / WiFi)
- Branding and logo customization
- Firmware customization
- Packaging customization
We support full product development from prototype to mass production.

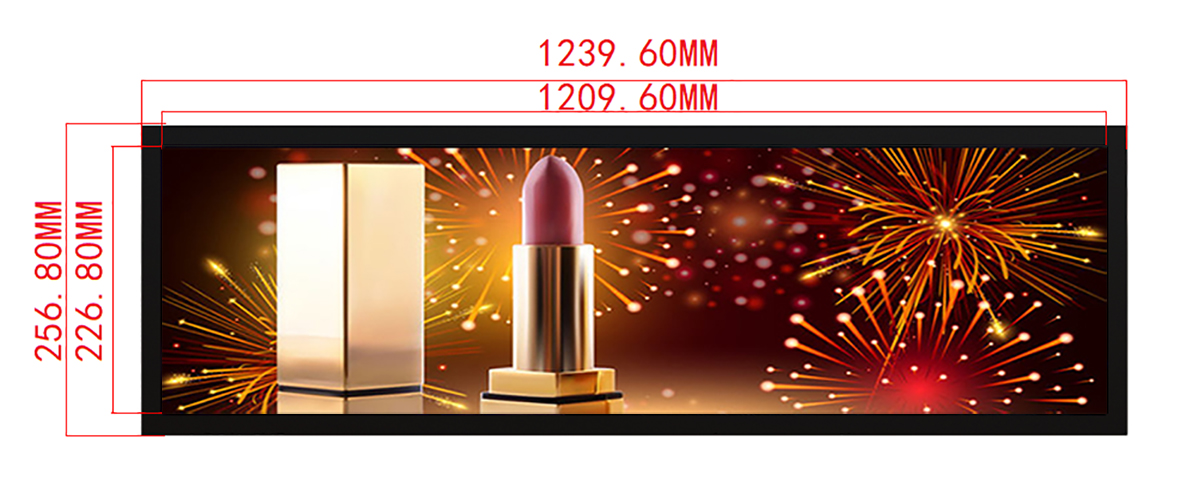

Product Dimension as follows:
Why Choose ZXTLCD?
As a professional Commercial LCD Display Manufacturer, ZXTLCD provides stable production capability and global supply chain support.
Our advantages include:
- Factory Direct Pricing
- OEM & ODM Manufacturing Services
- Professional Engineering Team
- Strict Quality Control System
- Stable Mass Production Capability
- Low MOQ Support
- Fast Lead Time
- Global Shipping Support
- One-Year Warranty
- Technical Support Team
- After-Sales Service
- Custom Digital Display Solutions
Frequently Asked Questions
What is a shelf edge LCD display?
It is a stretched LCD screen installed on supermarket shelves for product advertising and promotions.
Where is it used?
It is mainly used in supermarkets, grocery stores, and retail chain stores.
Can it run 24/7?
Yes. It is designed for continuous commercial operation.
What is the benefit of shelf LCD advertising?
It increases product visibility and improves customer purchasing decisions at the point of sale.
Do you support OEM customization?
Yes. We provide full OEM and ODM services including hardware, software, and branding customization.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
