Non-touchscreen
49.5 inch Supermarket Shelf Screen Ultra Narrow Bar Lcd Digital Media Player
49.5 Inch Metal Stretched LCD Display Display area:1209.6*340.2mm Resolution:1920*540/3840*1080 Material:Metal
49.5-Inch Ultra-Narrow Bar LCD Digital Media Player for Smart Retail Advertising
In today’s retail and commercial display industry, brands are rapidly shifting from traditional static signage to dynamic digital visual systems.
The 49.5-inch ultra-narrow bar LCD digital media player is designed specifically for this transformation, offering an ultra-wide form factor, high-definition playback, and flexible content management for modern retail environments.
As a professional LCD display manufacturer, ZXTLCD provides factory-direct commercial display solutions with full OEM and ODM customization for global partners.
This model also functions as a high-performance advertising LCD panel, optimized for continuous playback in supermarkets, retail shelves, and smart signage networks.
Ultra-Narrow Bar Design for Retail Shelf Integration
Unlike standard 16:9 displays, this stretched bar LCD adopts a long horizontal structure designed for narrow installation environments.
It is widely used in:
- Supermarket shelf-edge advertising
- Retail store promotional displays
- Shopping mall digital signage systems
- Elevator corridor media networks
- Brand chain store advertising solutions
The ultra-narrow form factor allows it to function as a seamless advertising LCD panel integrated directly into shelf systems without blocking product visibility.
Smart Digital Media Playback System
This display is built as a professional digital media player, supporting flexible content formats and continuous playback.
Key capabilities include:
- Loop video and image playback
- Scheduled advertising content management
- USB / network content updates
- Multi-zone display configuration
- Real-time remote content control
This makes it suitable for scalable retail advertising networks where centralized control is required.
49.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 49.5 inch | |
Resolution | 1920*540/3840*1080 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
The specification of Internal PCB Board | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 100w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Cloud CMS for Remote Management
The system supports cloud-based CMS integration, allowing businesses to manage multiple screens across different locations.
Key features:
- Remote content upload and scheduling
- Multi-screen synchronization
- Real-time campaign updates
- Device monitoring and diagnostics
- Centralized advertising control system
With CMS support, the advertising LCD panel becomes part of a fully digitalized retail communication system.
Industrial-Grade Commercial Performance
Designed for 24/7 operation, the display ensures stable performance in demanding environments.
Key advantages include:
- High-brightness LCD panel
- IPS wide viewing angle technology
- Anti-glare surface treatment
- Stable LED backlight system
- Low power consumption design
These features ensure long-term reliability in retail and public advertising applications.

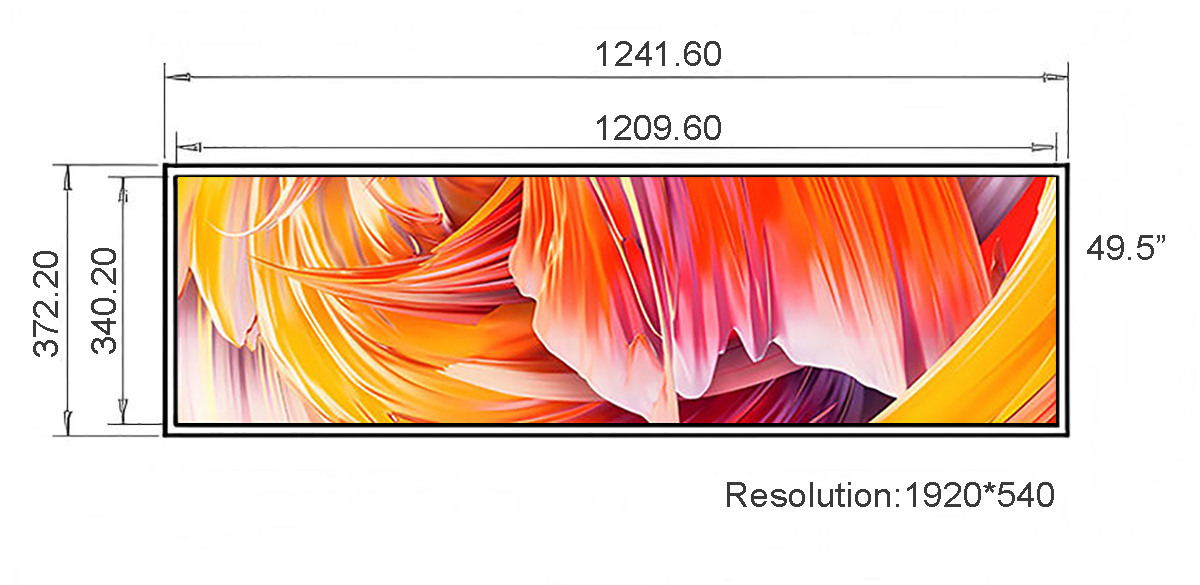

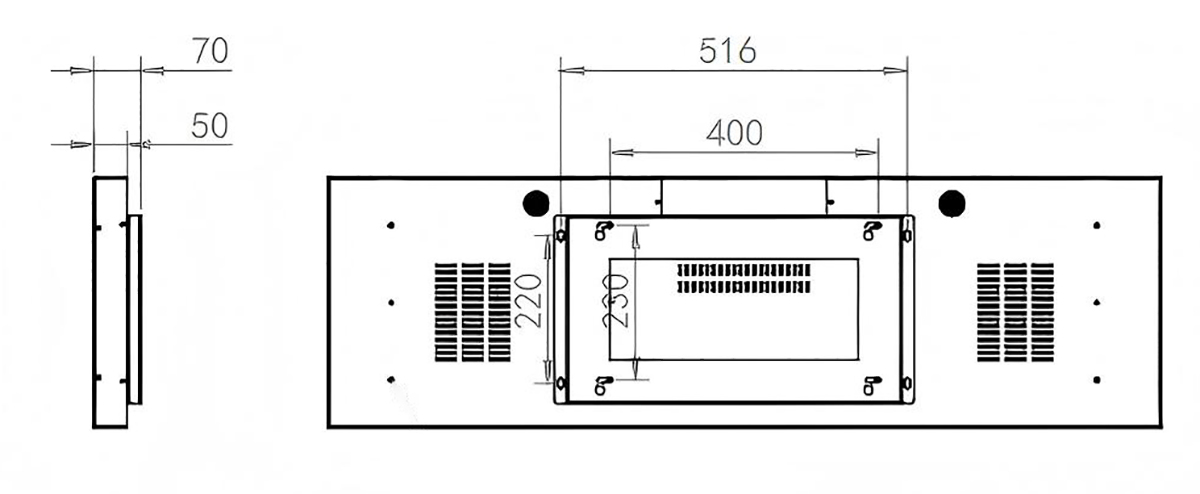

Product Dimension as follows:
OEM & ODM Custom Manufacturing
ZXTLCD provides full customization services for global partners.
We support:
- Custom screen sizes and aspect ratios
- Android / Windows system integration
- Private label branding
- Hardware interface customization
- CMS software integration
- Brightness customization for indoor/outdoor use
This allows system integrators and distributors to build tailored advertising LCD panel solutions for different markets.
Application Scenarios
The 49.5-inch ultra-narrow bar LCD is widely used in:
- Supermarket shelf advertising systems
- Retail store digital signage
- Convenience store promotional displays
- Pharmacy and cosmetic retail shelves
- Airport and transportation signage
- Smart building information systems
Its elongated structure makes it ideal for shelf-edge and corridor advertising installations.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
