Non-touchscreen

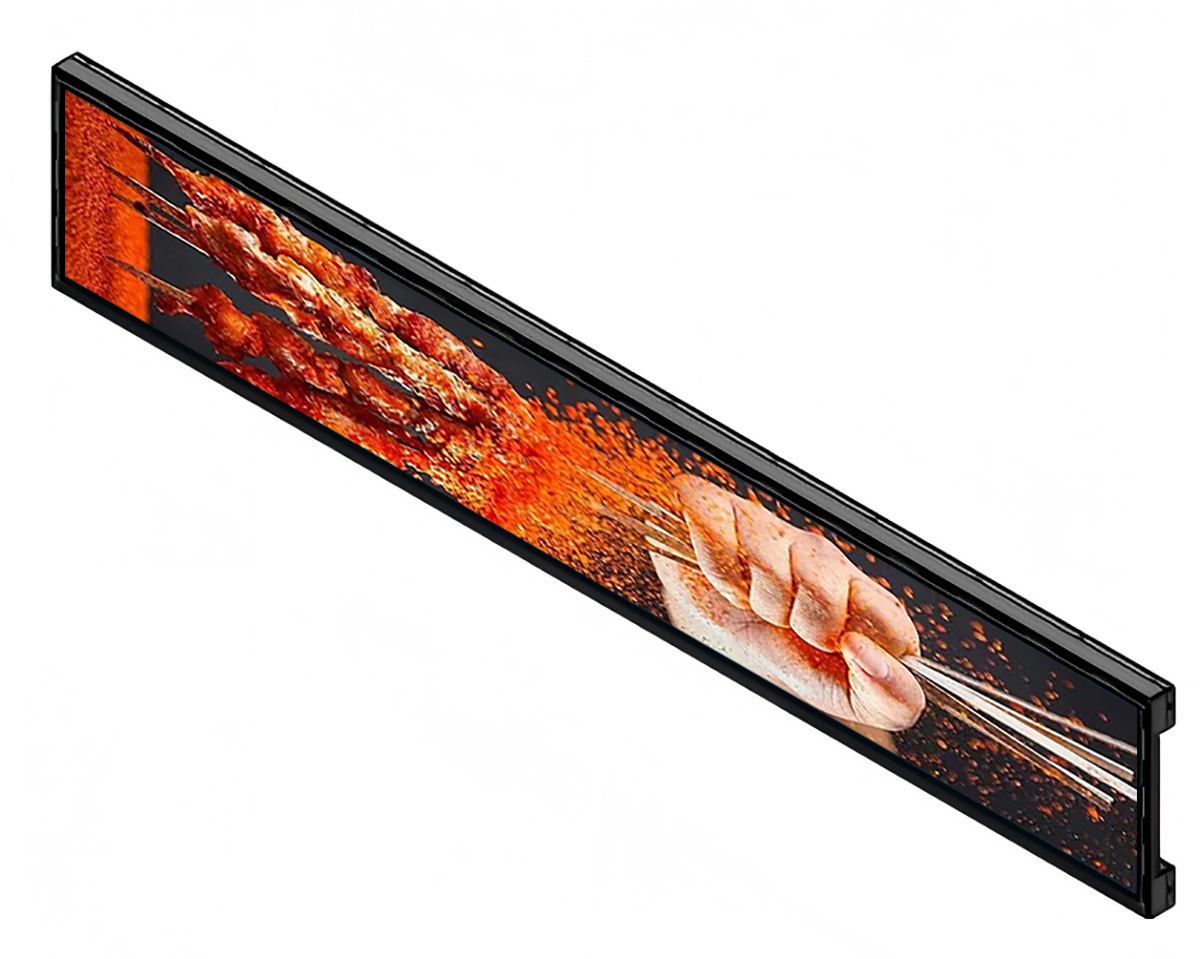

86 inch Wall Mounted Stretched bar ultra Wide Advertising Lcd Display with Wifi Connected
The 86-inch wall-mounted stretchched bar display features a built-in ambient light sensor that monitors surrounding light intensity in real time and automatically adjusts the backlight brightness.
Specifications
- Screen Size
- 86 inch
- Resolution
- 3840*600
- Display area
- 2158*337mm
86 inch Wall Mounted Stretched bar ultra Wide Advertising Lcd Display with Wifi Connected
Ultra Wide Digital Signage Solution for Modern Commercial Spaces
The 86 inch stretched LCD display is a professional ultra-wide commercial screen designed for advertising, information delivery, and digital communication in public and business environments. Featuring a wall-mounted structure, WiFi connectivity, and an ultra-wide format, this display provides an effective way to present dynamic content in locations where conventional screens are difficult to install.
As businesses and public facilities continue adopting digital communication technologies, ultra-wide displays are becoming increasingly popular for delivering targeted information and promotional content while maximizing available wall space.
Designed for High-Visibility Communication
Unlike standard advertising screens, a stretched LCD display utilizes an elongated format that is ideal for long corridors, building entrances, transportation facilities, and public information areas.
The display can be used to present:
- Advertising campaigns
- Corporate communications
- Public announcements
- Building information
- Event schedules
- Navigation assistance
- Promotional content
- Brand messaging
Its unique aspect ratio allows operators to display more information while maintaining a clean and professional appearance.
86 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 86 inch | |
Resolution | 3840*600 | |
Brightness | 350 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1200:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Min.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
The specification of Internal PCB Board | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Key Features of the 86 Inch Stretched LCD Display
Ultra Wide Commercial Screen
The panoramic display format creates a highly visible communication platform suitable for high-traffic environments.
WiFi Content Management
Built-in WiFi connectivity enables remote content updates, centralized control, and simplified campaign management.
High-Definition Image Quality
The commercial LCD panel delivers vivid colors, sharp text, and excellent visibility across the entire display area.
Reliable Commercial Performance
Engineered for professional applications, the display supports continuous operation and long-term stability.
Flexible Installation
The wall-mounted design allows deployment in:
- Shopping malls
- Airports
- Railway stations
- Hospitals
- Universities
- Corporate offices
- Hotels
- Government facilities
Applications Across Multiple Industries
Shopping Centers
Promote retail campaigns, events, and store information through visually engaging digital content.
Transportation Hubs
Display route information, passenger notices, advertising campaigns, and operational updates.
Corporate Buildings
Communicate company news, visitor information, and internal announcements effectively.
Hotels and Hospitality
Provide guests with event schedules, facility information, and promotional offers.
Educational Institutions
Support campus communication through digital notices, schedules, and announcements.
Public Service Facilities
Deliver important information to visitors in government offices, hospitals, and community centers.

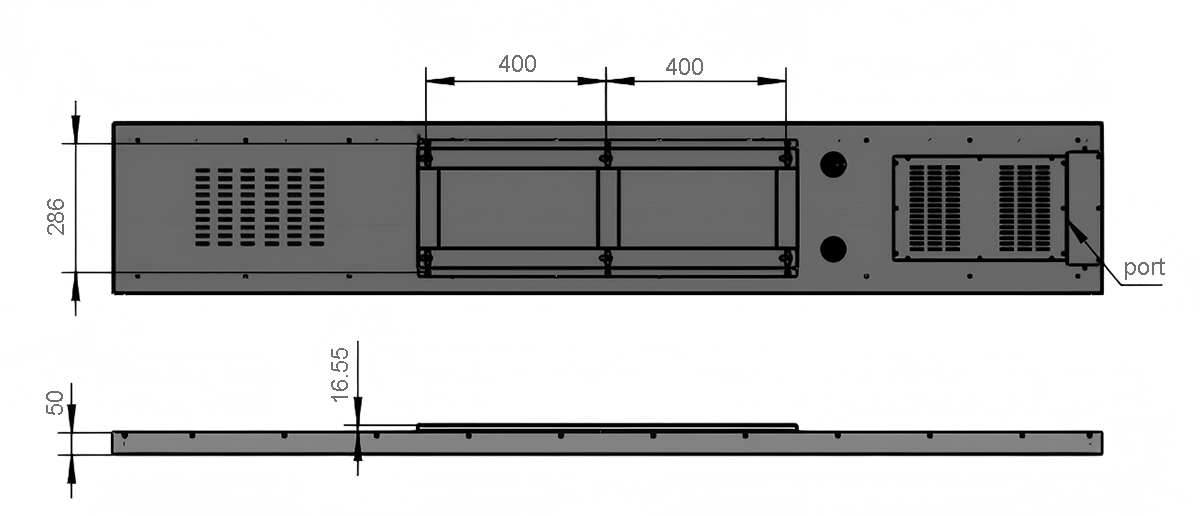

Product Dimension as follows:
Why Choose ZXTLCD
ZXTLCD specializes in stretched display manufacturing and commercial digital signage solutions.
Our advantages include:
- Factory-direct production
- OEM & ODM customization
- Experienced engineering team
- Strict quality inspection
- Global export experience
- Fast production schedules
- One-year warranty
- Professional after-sales service
We help businesses deploy reliable digital communication systems that improve information delivery and enhance brand visibility.
Frequently Asked Questions
What is a stretched LCD display?
A stretched LCD display is an ultra-wide commercial screen designed for advertising, information delivery, and communication in space-limited environments.
Can content be updated remotely?
Yes. WiFi connectivity enables remote content management through compatible CMS platforms.
Is the display suitable for transportation facilities?
Yes. It is widely used in airports, railway stations, and public transit systems for information and advertising purposes.
Do you provide OEM and ODM services?
Yes. ZXTLCD offers complete customization solutions including hardware, software, and branding.
Can the display operate continuously?
Yes. It is designed for professional commercial use and supports 24/7 operation.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
